Document processing¶
Document processing derives searchable renditions (derived text such as Markdown or a transcript) and, when a profile has embedding bindings, vector sets from one exact document version. The original version remains authoritative. A processing profile is a named, non-secret policy that fixes the provider descriptors, trust boundaries, retention choices, and retrieval limits that its work may use.
The daemon exposes only profiles it can execute:
Set up local text search¶
The command previews the profile, model, server, and provider disclosures, then enables indexing without a prompt. Running the command is the approval. Setup keeps an approved configured recipe or picks the first indexed compatible recipe in name order, then moves it to the shared server with its extractor, chunks, comparison metric, normalization setting, and existing vectors. Only new or changed content needs embedding.
If another model, text format, or formatted input limit above 2,046 rune tokens requires a separate built-in index, the preview says so before downloading or starting work. The original index stays intact. Vaults without compatible indexed recipes use the built-in local-text profile with Nomic and the plaintext extractor. When no configured recipe moves, an existing saved built-in index continues adding missing content. A moved recipe replaces that built-in selection for new imports. Mixed recipes keep image and other bindings on their configured providers. Setup moves one profile; other configured profiles still need their providers. Restart restores the saved profile, including existing watches.
To return to your configured providers, delete local-text.json beside the vault's config.toml and run docbank daemon restart. Documents added or changed while local indexing was selected need processing under the configured profile.
Moving a recipe processes the previewed document count before setup returns. Restart resumes background indexing for the saved profile. Revoking processing consent stops provider calls.
Both --server auto and --server local use the shared per-user kennembed server. Discovery uses its per-user runtime record. When the server or model is missing, the command downloads them from Kit's shared installation and prints the download size first. An already installed server downloads nothing. The daemon's changing loopback port keeps the same consent grant.
Cancellation before apply and failed server startup leave the saved choice unchanged. New imports keep the same ongoing approval. The CLI installs and starts the shared server before apply; API apply requires a ready server. Consent is granted before the selection is saved. A failure before file publication leaves the previous selection in place and reports that consent was saved. A later durability failure reports that the new selection was published. Setup restarts and reconnects the daemon before reporting indexing enabled. If restart fails, the choice stays saved; run docbank daemon start to activate it.
For other processing, configure a profile and its referenced rendition, embedding, and retrieval profiles, then select a name listed by processing profiles.
Preview the current version before sending a document or query to any provider:
The plan names the stable node and content-version IDs, profile fingerprint, every provider flow and trust boundary, input classes disclosed to each flow, retained derivative classes, estimated source bytes and provider calls, any work beyond the selected source that consent starts, whether consent is currently required, and the backup consequence. Each flow also names the immediate and ultimate processor, endpoint, deployment, model and revision, vector space where applicable, provider-visible metadata, and retained artifact roles. These runtime disclosures are part of the plan fingerprint. Re-run the preview when the source, profile, or provider destination changes. The consent state shown in a plan is advisory and does not change the fingerprint. Execution checks consent again.
When local inspection admits a file but the profile's provider doesn't accept its
format, the plan reports unsupported_media_type. Starting that plan fails with
rendition_source_ineligible. The web app doesn't offer such a profile.
Run only the reviewed plan:
docbank processing build /inbox/notes.txt \
--profile <configured-profile> \
--plan-fingerprint <fingerprint-from-plan> \
--consent
--plan-fingerprint must be the lowercase SHA-256 fingerprint from the
preview. The CLI requires --consent. It grants ongoing permission for this
profile configuration to the vault's daemon operator across documents and
searches, with no expiry. The grant is not limited to this job. Workers check
consent again before provider egress and before publication. The daemon returns
a durable processing job ID before provider work finishes. That receipt
confirms acceptance only. The daemon's later status reports progress or
failure. Use the ID to inspect aggregate state and any failure code:
For supplied recordings, media submit stores the original bytes and caller
occurrence before processing starts. Review the ASR plan and grant its exact
disclosure, then use media status to track the attempt. media retry queues
a later attempt after a transient or credential failure. It still requires the
same consent and returns before the provider finishes. coverage_state keeps
the last successful transcript separate from the newest attempt.
For automation, processing profiles, plan, and status support --json.
processing build --ndjson writes the job event immediately, followed by one
terminal status or error event. If the stream ends early, keep the first job ID
and query its status. The authenticated HTTP API provides the same preview,
consent, run, status, rendition, and coverage contracts, plus search limited to
an authorized source set (a source fence). See the
HTTP API.
Prepare a native PDF¶
Inspect the current PDF version before designing redaction decisions:
docbank redaction prepare /inbox/source.pdf
docbank redaction prepare id:42 --version <retained-version-id> --json
This requires the configured Linux amd64 page runtime. The original must belong to a live file; an explicit retained historical version is allowed. The command checks the node revision and exact source identity. If the selection changed, inspect it again before retrying.
Human output shows source, evidence and map digests, plus each page's byte span,
accepted atom count and ordered/unordered gap counts. It does not print original
text. --json returns the complete native-pdf-preparation/v1 envelope,
including unredacted text. Treat any saved JSON like the original document.
Agents can use the same JSON command or authenticated
POST /api/v1/redaction/prepare. The browser uses the same preparation in its
PDF review editor; no MCP tool is exposed.
Preparation returns coverage gaps for inspection. Every ordered gap must be fully masked, and an unordered gap requires masking its whole page, before the resolver can proceed. A zero-gap result does not approve redaction or verify an output PDF. Keep the complete envelope with its evidence and frames; the map alone is not an execution authorization. This command applies no masks and creates no retained job or output PDF.
The entire PDF must fit within 64 MiB and 16 pages. Retained evidence is capped at 8 MiB and the full result at 15 MiB. Work has a 60-second request deadline; limits or failure never return a partial preparation. Prepare, resolve and render share one slot, with no queue. Busy or memory refusals exit 5: wait for active work to finish, or retry when daemon memory use is lower. The renderer's 1 GiB RSS ceiling counts the whole daemon, so even a small PDF can be refused on a busy process.
Malformed selections exit 2, unavailable documents exit 3, changed selections exit 4, and failed integrity checks exit 6. Missing runtime, unsupported PDFs, work limits, request cancellation and worker failures exit 1. Native text inspection does not add OCR; the font and coverage limitations still apply.
Describe photos¶
Configure a vision profile, review processing plan for a photo, and grant consent with processing build. Eligible photos then queue automatically, a few at a time. The provider receives the cached grid JPEG, at most 512 pixels on its longest edge and re-encoded without metadata; filenames and original bytes stay in the vault. Hidden, excluded, trashed, and superseded photos are skipped before the call and again at publication, and a hidden photo retries once it is eligible again.
Automatic face detection requires separate profile consent and sends the same stripped grid preview.
The first request to a provider checks it with a synthetic image, and a failed check retries no sooner than a minute later. If it fails when you grant consent, the error says consent was saved. Caption, tags, and visible text arrive as one suggestion. An invalid caption or an oversized tag is dropped alone; a non-JSON reply publishes nothing. A dropped connection, timeout, or daemon restart during a description call retries it with backoff, since a description has no side effects.
Derivative purge and consent revocation leave pending suggestion text in place. Dismissing the suggestion removes it, and so does purging the photo version.
Embed photos for meaning search¶
Image bindings serve Photos search. Documents search uses text bindings; a hybrid search with only image bindings uses filename and retained-text matches.
An image embedding binding uses input_kind = "image" and the docbank-standard-embedding-bridge/v2 adapter. Its descriptor must support image documents and text queries in the same vector space. The bridge receives a verified, stripped grid JPEG through derived-upload authority, with an empty filename. Original image bytes and embedded metadata stay in the vault.
After consent, existing embedding reconciliation discovers eligible photo versions in bounded pages. Jobs use the existing retry, fencing, vector-generation activation, and retirement paths. Visibility, current content, preview identity, purge state, and consent are checked before upload and publication. Export and backup retain image authority with the existing embedding catalog. Configure the bridge's limits to match the provider; image inference runs through the configured bridge.
Review and render a native PDF¶
Save the preparation, supply explicit masks, then inspect the review before rendering:
docbank redaction prepare /inbox/source.pdf --json > preparation.json
docbank redaction resolve preparation.json masks.json --json > review.json
docbank redaction render preparation.json masks.json review.json redacted.zip
The ZIP contains exactly redacted.pdf, redacted.txt and receipt.json.
Extract redacted.pdf to open it in a PDF viewer. The text file contains the
sanitized text, with a form feed after each page. The receipt binds the source,
review, recipe and file hashes. --json on render also reports the local
archive path, size, hash and publication state. --overwrite permits replacing
an existing output; otherwise an existing or concurrently created file is kept.
Output must be outside the Docbank data directory.
masks.json is an array. Each mask has a distinct canonical lowercase UUIDv4
id and a selector. For example, to remove the first six UTF-8 bytes:
[
{
"id": "11111111-1111-4111-8111-111111111111",
"selector": {
"kind": "text",
"map_sha256": "<map.sha256 from preparation.json>",
"span": {"start": 0, "end": 6}
}
}
]
Spans must end on UTF-8 boundaries. Rectangle selectors use boxes, each with
page, frame_sha256, x0, y0, x1, y1 in the map's integer page frame.
Page selectors use pages, a list of one-based page numbers. All selector kinds
carry map_sha256. Up to 256 masks, 1,024 boxes and 1,024 page references fit
within the 1 MiB mask limit.
Run resolve without --json to see effective masks, removed byte spans and
quoted retained text for each page. If a partial atom needs a larger mask,
resolve returns selection_expansion_required and writes the complete proposal
to stderr. Review its expanded selector, explicitly replace the selector in
your masks file, and resolve again. Nothing silently accepts the expansion.
Every gap anywhere in the document must be covered: ordered gaps need covering
masks; unordered gaps need a whole-page mask. mapping_incomplete produces no
review or output PDF.
Resolve and render inspect the selected original again. Tags, names, moves and a newer current version do not invalidate a review of an unchanged retained version. The selected version must still belong to the live file; trash or pruning makes it unavailable. Revisions in the review and receipt are informational. Keep the complete preparation envelope, masks and review; a bare map is insufficient. These files contain unredacted evidence.
Render can hold the shared slot for up to ten minutes, including delivery. Prepare and resolve have 60-second request deadlines. A busy message identifies the active operation. Busy or memory refusals exit 5; wait for that operation or lower daemon memory use. Changed evidence or review exits 4 and requires a new review. Invalid local inputs exit 2, unavailable versions exit 3, integrity failures exit 6, and other refusals or I/O failures exit 1. No write is retried automatically. After a reported save followed by an output or cleanup error, inspect the named archive before retrying.
The daemon verifies the fresh PDF before creating the ZIP. The CLI verifies the
transferred archive, its inventory, file hashes, receipt and reviewed text
before publishing one file. Client checks do not independently verify the
source pixels. Plain rendering retains no job, attachment or output for later download.
A killed daemon may leave private files in its spool; see the
staging bounds.
Agents can use these commands or the authenticated POST /api/v1/redaction/resolve
and /api/v1/redaction/render routes. Browser sessions use resolve and the
temporary-preview routes described below; direct render and reservations remain
API-key-only. No MCP tool is exposed.
Review a PDF in the browser¶
Open a live PDF in Documents, then choose Redact PDF. Reading and marking share the same page navigation, search and zoom; the inspector offers the same entry point. The configured Linux amd64 page runtime is required. The editor supports one original PDF up to 64 MiB and 16 pages. Empty files, saved-result sources and related previews cannot start a review. Fit page initially shows the whole page; choose Fit width or a percentage to inspect it more closely.
- Wait for the original page to render. With Draw rectangle off, select a passage on one page and choose Mask selected text. One Remove action removes the whole selection. You can also draw rectangles or choose Mask whole page. To draw with the keyboard, focus the PDF, move with arrow keys and press Enter at each corner. Shift moves 0.1 inch; Escape cancels the unfinished rectangle. The reader announces the page and cursor position in inches as you move it with the keyboard. Arrows follow the screen directions after viewing rotation, and the crosshair stays the same size on screen at every zoom. Page and zoom changes cancel the unfinished rectangle too. Drawing stays on after each rectangle.
- Cover every coverage gap. An unordered gap needs a whole-page mask. A safety margin can reach nearby text even when you selected complete words. Review any proposed expansion and explicitly choose Use expanded mask, or keep editing.
- Choose Preview redaction. Inspect Redacted and Text on each page. The displayed page images are the exact images verified against this PDF.
- Choose Confirm and download ZIP, then Download ZIP. Extract
redacted.pdfto open it. The ZIP also contains the sanitized text and receipt. Keep the tab open until the transfer finishes.
Original is an unchecked browser rendering of verified source bytes. It may differ from the server renderer. Server coverage gaps and the verified Redacted view remain authoritative. Drawing is disabled while the displayed page is loading or has failed; Retry page retries a failed image. Cropped pages may use fractional point coordinates, but unsupported precision or a browser/server geometry disagreement still disables drawing.
Text selection must match the server's prepared text uniquely. Repeated full contexts, differing extraction or an oversized passage require rectangle or whole-page marking instead. Ligatures and some non-Latin text may already have server coverage gaps. A selection can include several lines; matching selected line breaks are removed with the passage. Different extraction order can produce several text masks, shown as one removable group. Text masks use the existing 256-mask limit, without a rectangle box for each glyph. An expansion covering separate text ranges becomes a rectangle mask on approval. It uses rectangle capacity and keeps whitespace between the selected glyphs.
Back to reading discards masks and preview after confirmation, then restores the reading position. The original stays loaded. Original print and export are disabled during review; delivery goes through the confirmed ZIP download.
The original is unchanged. A changed source version before preview requires reopening the intended PDF; tags, names and moves preserve masks. Once ready, the preview is frozen even if the original is replaced or trashed. Back to masks discards that output before editing. Repeated downloads return identical bytes. Verification checks the masks and text; it does not prove unmasked pixels match the original or authenticate the producer.
Canceling a preview keeps the masks. If creation loses its response, the editor releases any server preview before enabling another attempt. If cleanup fails, choose Release preview to retry it.
Only one temporary preview can be open across the daemon. It expires after 30 minutes, and is removed on discard, sign-out or daemon restart. Closing or reloading the tab requests cancellation of this preview and its transfers. It does not end the browser session or cancel other exports and imports. Returning to a cached page leaves the editor closed. If a crash or lost cleanup request prevents removal, wait for expiry. There is no saved draft or restart recovery. A ready preview releases the rendering slot but can retain up to 1.53 GiB of private spool files. See temporary-preview storage.
For later offline verification, expand Private review files and save the
preparation, masks and review. Their names contain PRIVATE; preparation
contains unredacted evidence. Keep all three separate from the delivery ZIP.
Use them with redaction verify.
Deliver one reviewed PDF with Bates numbers¶
Reserve a range only when you intend to keep the original indefinitely. This
creates a real collection snapshot that retains the unredacted original through
trash, garbage collection and backups. There is no release or void command for
this snapshot or range. --retain-original is required on every reservation
request, including retries.
Prepare and review the PDF as above, then choose a namespace and explicit start:
docbank bates namespaces --create --prefix PROD --padding 6 --json
docbank redaction reserve preparation.json masks.json review.json \
--namespace <namespace-uuid> --start 1 --retain-original --json > reservation.json
docbank redaction render preparation.json masks.json review.json numbered.zip \
--allocation <allocation_id-from-reservation.json> --json
Each source page gets a half-inch footer containing its reserved label. A label
that cannot fit is refused before the original is retained or numbers are
reserved; labels are never clipped or shrunk. Masks cover the source area only.
The ZIP still contains redacted.pdf, redacted.txt and receipt.json. Extract
redacted.pdf to view it. The PDF text layer includes the numbers; redacted.txt
contains only the reviewed sanitized text, without footer labels. The receipt
records the reservation, labels and indefinite original retention.
The vault retains the numbered PDF, its recipe and page receipts. It does not retain the ZIP, sidecar or the preparation, masks and review files. Keep those three review inputs separately for full verification and ZIP reconstruction. Each new PDF embeds about 6 MB of compressed font data, even for a small document.
Reservation and snapshot creation are atomic. After an interrupted reservation,
repeat exactly the same command with the same review, namespace, start and
retention consent. It returns the existing allocation. Changing those inputs
requests a different allocation or produces a conflict; it is not a recovery
step. Failed renders leave the range reserved. Numbers are never silently reused.
Retry render with the same --allocation, even if the source was subsequently
trashed: the sealed snapshot supplies the exact original. A completed retry
uses the first retained PDF and rebuilds the same ZIP without the page runtime.
It still takes the shared native-PDF slot; a running render can hold that slot
for ten minutes, during which attempts fail as busy. Reservation-receipt replay
and a retained PDF download need no slot.
Recover the PDF by allocation ID, or find the allocation by its number through
find_bates_exports or GET /api/v1/bates/exports/candidates?bates_label=PROD000001:
docbank bates export download <allocation-id> recovered.pdf --json
docbank bates export download <allocation-id> checked.pdf --json \
--preparation preparation.json --masks masks.json --review review.json
| Inputs and artifact | verification result |
What is checked |
|---|---|---|
| Numbered PDF without review files | recorded_bytes_and_numbers |
Size and SHA-256 against the retained artifact, plus recipe, allocation and label metadata. Masks, approved text and rendered numbers are not rechecked. |
| Numbered PDF with all three review files | masks_text_and_numbers |
Recorded identity plus PDF structure, reviewed masks and text, footer layout and rendered numbers. |
| Ordinary stamped Bates PDF with the installed engine identity | stamped_labels |
Recorded identity and the existing stamp verifier. |
| Ordinary stamped Bates PDF with a different recorded engine identity | recorded_bytes_and_numbers |
Recorded identity and numbering metadata. Rendered stamps are not rechecked. |
Supplying any review-file flag requires all three. The verifier is selected from the checked recipe before download; a failed full check never retries a narrower one. Recovery without review files works after restart and backup/restore, without a configured page runtime or the original renderer, writer or font version. Its assurance depends on the vault's retained record. Full verification requires a supported engine recipe. Both the original v2 writer and the compressed-font v3 writer are supported for verification. Unfinished v2 reservations still render with their original review and numbers. To start a new reservation or plain render from an old v2 review, resolve again; otherwise the command exits 4. New reviews use v3, saving about 3.62 MB per PDF without changing its font or character coverage. Other unqualified engine identities report "verifier version differs" (exit 1), not an integrity failure. Footer text and placement must match exactly. Visible numbers are compared with independently rendered expected labels. Each grayscale sample inside the label box may differ by at most 16 on the 0–255 scale; positions must match, and pixels outside the box must be white. Render-time verification still compares the complete raster exactly. Full verification still does not prove unmasked pixels match the source or authenticate the producer.
Agents can reserve and render through the CLI or API-key-only
POST /api/v1/redaction/reservations and /api/v1/redaction/render routes.
The existing MCP export_bates_file tool supports the reduced recovery check
and reports its scope. It does not accept review files or reserve numbered
redactions. No browser control is included. Load-file exports accept ordinary
stamped allocations only. Use redaction package for a recipient delivery of numbered redactions.
Package completed numbered PDFs for a recipient¶
redaction package puts completed numbered redactions into one ZIP for import
by a recipient. It preserves each retained PDF and its numbers, verifies masks,
text and visible labels against your saved reviews, and includes label-free
text plus DAT, OPT and mapping files. It creates no new reservation or rendering.
Create selection.json in the order the documents should appear:
{
"contract": "native-pdf-recipient-selection/v1",
"documents": [
{
"allocation_id": "11111111-1111-4111-8111-111111111111",
"preparation": "first/preparation.json",
"masks": "first/masks.json",
"review": "first/review.json"
},
{
"allocation_id": "22222222-2222-4222-8222-222222222222",
"preparation": "second/preparation.json",
"masks": "second/masks.json",
"review": "second/review.json"
}
]
}
Paths are relative to the selection file; absolute paths are also accepted. Every allocation must be a completed numbered native redaction. Ordinary stamped exports are refused. Allocations and labels must be distinct. Labels must fit the recipient importer's 256-byte limit; commas and line breaks cannot be represented in OPT.
The command checks all local inputs and pins each reviewed text file's size and SHA-256 before downloading any PDF. It then reads each document's inputs again and requires the same review digest. A changed file is refused, never silently adopted. This reads each input twice while keeping only one full review and one downloaded PDF in memory or staging at a time. Supported v2 and v3 deliveries may be mixed. The daemon must hold the completed artifacts; a live source or configured page runtime is not needed. Embedded PDFium still performs full verification, with no reduced-check fallback.
The ZIP contains one VOL001 directory. Each document has PDF/000001.pdf and
TEXT/000001.txt paths assigned by selection order. DATA.DAT has one row per
document, and DATA.OPT has one row per page pointing into that whole PDF. The
first label is the document ID; existing ranges and gaps remain unchanged.
mapping.json and receipt.json sit at the ZIP root. The receipt records file
hashes, allocation and namespace IDs, labels and review digests. It contains no
original text, source identities, masks or review payloads. Keep the input files
privately; they are not sent to the recipient.
JSON reports state, destination, size, sha256, receipt_sha256,
verification: "masks_text_and_numbers" and the receipt. Save the whole-ZIP hash
separately. Verification does not prove unmasked pixels match the original or
authenticate the producer.
Limits are 16 documents, 16 pages per document, 64 pages total and 512 MiB for the complete ZIP. The selection and each metadata entry are limited to 256 KiB; each text file is limited to 16 MiB. The command has a 30-minute deadline, with 10 minutes per PDF and the existing renderer memory and page limits. A private directory beside the destination holds the growing ZIP and at most one PDF, up to 1 GiB combined plus metadata and filesystem overhead. Files on a memory-backed filesystem consume RAM beyond the renderer's RSS accounting.
Choose a destination outside the Docbank data directory. Publication never
overwrites a destination. A failure removes staging and leaves no partial
destination. If reporting fails after publication, the error names the
saved file. A hard kill may leave a docbank-recipient-* directory beside the
destination; after confirming the process has stopped, remove that exact directory
and retry. Packaging does not retain its ZIP automatically; use add if wanted.
Existing allocations continue to retain their unredacted originals indefinitely.
Malformed or oversized inputs exit 2, changed reviews exit 4, resource refusals exit 5, and PDF or package mismatches exit 6. Missing retained artifacts exit 3; unsupported verifier versions, I/O failures and cancellation exit 1.
To import the delivered ZIP, extract it first, then run:
docbank package preflight ./recipient --profile dat-concordance-v1 \
--page-map-profile opt-standard-v1 --encoding utf-8 \
--map ./recipient/mapping.json --json
docbank document mkdir /received
docbank package import <preflight-id> --name "Received delivery" \
--into /received --index-supplied-text --json
docbank package import status <operation-id> --json
Use the returned preflight ID; do not add --accept-partial to bypass an error.
package preflight accepts a directory. Direct ZIP import is available through
the existing sealed mailbox-container API path. Recipient import preserves the
sender's PDFs, text and labels; it does not check the sender's private review or
establish provenance. Range endpoints are recorded under the sender's namespace
UUID; every OPT page label is recorded under received, with received provenance.
Import creates no recipient Bates namespace or allocation.
Check and retain a saved archive¶
Use the saved preparation, masks and review to check a ZIP after copying or recovering it:
docbank redaction verify preparation.json masks.json review.json redacted.zip
docbank redaction verify preparation.json masks.json review.json redacted.zip --json
This command runs offline, without a daemon, source PDF or configured page runtime.
It checks the ZIP inventory, entry checksums, receipt bindings and sanitized
text, then uses embedded PDFium to check the PDF against the review. Every
reviewed mask must be opaque black, the searchable text and its placement must
match the reviewed runs, and the file must have the fresh writer's structure.
For numbered output, the receipt also binds the reservation and expected footer
labels; the verifier checks their layout, text and pixels.
It prints the complete archive's SHA-256 and byte
count, plus the receipt. JSON output is { "receipt": ..., "size": ..., "sha256": ... }.
The archive must be a regular file of at most 544 MiB. Keep it unchanged while
the command captures it. All checks use one private temporary ZIP snapshot,
which is removed before success is printed. Allow up to 544 MiB of temporary
storage; a memory-backed temporary directory consumes RAM outside the process
RSS limit. Verification has a ten-minute deadline and a 60-second limit per page.
It accepts up to 16 pages at 300 DPI, within the render recipe's image and text limits.
The verifier uses the current preparation and recipe contracts;
it does not promise compatibility with every future format.
Success means the PDF implements the reviewed masks and text. It does not
prove that unmasked image content matches the source or authenticate the producer.
Changes outside the masks can pass if the receipt hashes are updated too.
Compare the reported whole-archive SHA-256 with the value saved from redaction render, or
with a trusted vault version's blob_hash. The archive's own receipt is not
that independent record.
To retain the ZIP in a vault, use ordinary file storage:
docbank document mkdir /produced
docbank document add redacted.zip --dest /produced
docbank document get /produced/redacted.zip recovered.zip
docbank redaction verify preparation.json masks.json review.json recovered.zip
Packing, garbage collection and backup treat the ZIP as an ordinary file. Keep the preparation, masks and review separately: they contain unredacted evidence and are not included in the ZIP. Backing up the ZIP alone does not recover those inputs. Deleting the source PDF does not prevent offline checks.
Malformed local JSON inputs exit 2; changed review bindings exit 4; archive or PDF integrity failures exit 6. A renderer RSS refusal exits 5 and can be retried when memory use is lower. Opening, reading, staging or cleaning up files, cancellation, timeouts, engine failures and output failures exit 1. No success result is printed on validation failure. Check the exit status even when output was partially written.
Convert documents with Docling¶
Configure a Docling document rendition profile
with the docbank-docling-document/v1 adapter, then select it from a processing
profile. The daemon can convert locally admitted PDFs, PPTX/XLSX files, plain
text/Markdown, and PNG/JPEG images through your Docling Serve deployment.
DOCX remains blocked by local inspection; this profile does not admit HTML,
TIFF, legacy Office, audio, or video. When local inspection refuses a file,
its plan shows the reason on an ineligible: line and processing build
fails with rendition_source_ineligible. A locked PDF instead ends with
pdf_password_required when no configured password opens it or no password
file is configured.
Import the original, inspect its plan, and consent to the exact destination:
docbank document add /path/to/report.pdf --dest /inbox
docbank processing plan /inbox/report.pdf --profile <configured-profile>
docbank processing build /inbox/report.pdf \
--profile <configured-profile> \
--plan-fingerprint <fingerprint-from-plan> \
--consent
The plan discloses the endpoint, deployment, trust boundary, filename policy,
and retained artifacts. Import and preview send no document to Docling. Track
the returned job with processing status <job-id>. When it completes, the
retained Markdown is available through the rendition read API and lexical
search. Original bytes stay unchanged. PDF output can retain exact page
locations; other supported formats report degraded provenance.
Convert PDFs with Mistral OCR¶
Configure a Mistral OCR rendition profile
with an authenticated capability manifest, then select it from a processing
profile. docbank processing profiles lists the executable profile. Use the
same processing plan and consented processing build flow as Docling to
retain searchable Markdown from PDFs. The plan discloses Mistral's EU endpoint
and the pinned model before upload. Local refusals end builds with
rendition_source_ineligible, except locked PDFs, which end with
pdf_password_required when no configured password opens them or no password
file is configured.
Password-protected PDFs¶
Docling and Mistral processing can open encrypted PDFs using [media].pdf_passwords_file from configuration. Put one password per line in that owner-only file. LF and CRLF line endings work; blank lines are ignored, and spaces belong to the password. The file must be UTF-8 without a byte-order mark and may contain up to 16 KiB and 128 passwords.
Docbank decrypts a copy in memory before sending it to the provider. The archived original stays encrypted and unchanged. When no password opens the PDF, or no password file is configured, the browser dialog says the PDF is locked and disables its run button. CLI and API builds create a job that ends failed with pdf_password_required. The CLI says "no configured PDF password opens this PDF" and points to media.pdf_passwords_file. Read the job with docbank processing status <job-id>.
Add a working password to the file, then build again. The daemon reads the file for each locked-PDF inspection, so editing passwords needs no restart. Restart once when first configuring the file path. If the file can't be read, planning or building a locked PDF returns rendition_operator_required with "PDF passwords file can't be read; check media.pdf_passwords_file", without the file's path. Queued jobs retry until the file is fixed. Plain PDFs and audio keep processing.
Design choices¶
The pinned pdfcpu v0.15.0 password preparation rejects spaces, non-ASCII punctuation such as curly quotes or £, and emoji in AES-256 passwords. It also Unicode-normalizes decomposed accents and fullwidth letters. These files report pdf_password_required even with the correct password. Older RC4 and AES-128 ciphers support spaces and PDFDocEncoding characters such as £, because Docbank also tries each password converted from UTF-8 to PDFDocEncoding. With a password file configured, Docbank tries an empty password first, even when the file is empty or contains only blank lines, so owner-only PDFs open. Without a configured file, Docbank tries no passwords, and every encrypted PDF reports pdf_password_required.
Find similar documents¶
Choose a file's Find similar row action in the web app. The Similar documents drawer searches the file versions loaded in the current view. With several profiles that store embeddings, choose one. Results use the selected file's stored embeddings locally. A file without embeddings for that profile shows none; process it, then retry. Views above 4,096 file versions must be narrowed first.

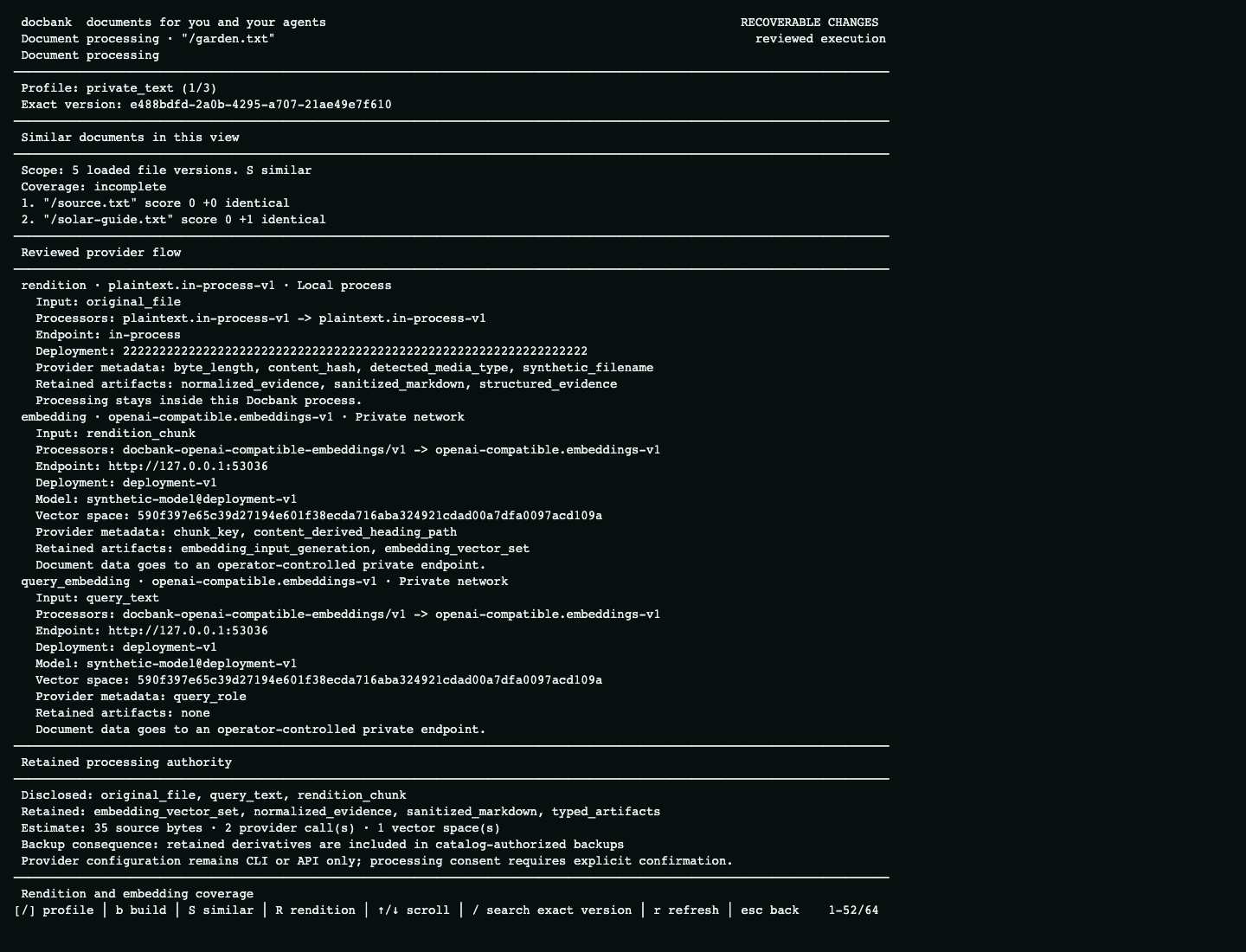

In the TUI, press uppercase S on a file to search the current listing.
Lowercase s still sorts. The selected file is excluded, while another file
with identical bytes can appear. Results group identical content and show the
number of other eligible copies. Coverage describes this bounded scope.
The CLI reference describes the
equivalent --similar-to command.

Processing flows and boundaries¶
Each profile makes its disclosure visible before execution. There are three useful shapes:
- Private rendition. When an operator configures a rendition profile with
the
docbank-plaintext-rendition/v1adapter and selects it from a processing profile, it runs in process, opens no network connection, accepts supported UTF-8 text-like media types up to 16 MiB, and produces one generic evidence unit. Docbank therefore reports its provenance as degraded. Thedocbank-epub-rendition/v1adapter also runs locally. It extracts ordered XHTML spine text from supported EPUB packages and keeps source locations. The plan reportslocal_processand thein-processdestination before consent. See local EPUB extraction for limits and counting rules. - Hosted provider. A configured Mistral OCR or embedding runtime, or an embedded caller's rendition or embedding provider, may cross a hosted-provider trust boundary. The reviewed plan identifies the provider and the input class it receives: the original file, a rendition chunk, an original-file embedding input, or query text. Docbank does not treat a hosted profile as private. A configured Docling document runtime can receive an original file and retain searchable Markdown. A configured Docling ASR profile can receive an original supplied WAV or MP3 file and publish generated transcript evidence. The daemon reports the provider destination before the operator grants consent.
- Direct embedding. A profile can embed an original file without a rendition provider. That flow has no readable rendition or lexical body index, so a relevant direct-file result comes without a text excerpt.
All flows use the same source identity, profile fingerprint, authorization,
bounded upload, and catalog publication path. An embedded Go application
supplies provider implementations through ProcessingOptions, but it cannot
bypass those checks. Embedded network providers need an endpoint disclosure
when the vault opens. See
Configure document processing in Go.
Check a private processing deployment¶
From a repository checkout, run
scripts/test-private-processing.sh
against your Docling Serve and OpenAI-compatible embedding endpoints. The
runner creates two synthetic text documents in a disposable embedded vault,
stores their renditions and vectors, and checks lexical, semantic, and hybrid
search limited to each document's source fence. It does not read an existing
vault or personal corpus.
The runner requires Bash, setsid, the repository's Go toolchain, and cached
Go modules. Populate the module cache with go mod download before running it,
because the runner builds with GOPROXY=off. The embedding service must accept
the Nomic document/query input format. Set the following variables to match
your services. The loopback URLs and model values shown are examples:
export DOCBANK_PRIVATE_PROCESSING_DOCLING_URL='http://127.0.0.1:5001'
export DOCBANK_PRIVATE_PROCESSING_DOCLING_ALLOWED_CIDRS='127.0.0.1/32'
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_URL='http://127.0.0.1:8080'
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_ALLOWED_CIDRS='127.0.0.1/32'
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_MODEL='nomic-embed-text'
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_REVISION='local-v1'
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_DIMENSIONS='768'
read -rsp 'Embedding API key: ' DOCBANK_PRIVATE_PROCESSING_EMBEDDING_API_KEY
export DOCBANK_PRIVATE_PROCESSING_EMBEDDING_API_KEY
scripts/test-private-processing.sh
Set DOCBANK_PRIVATE_PROCESSING_DOCLING_API_KEY too if Docling requires it.
Endpoint URLs must be HTTP(S) origins with a literal private or loopback IP,
without credentials, query parameters, fragments, or a path beyond /. Each
endpoint must fall inside its provider's allowed CIDRs. Separate multiple
ranges with commas or whitespace. Hostnames and public address ranges are
rejected.
The output contains aggregate provider-request and connected-address counts,
plus the rendition and search results. It checks the connections made by
Docbank's provider transports. It does not attest to onward traffic from
those endpoints: endpoint_onward_egress=not_attested means the operator must
check that separately. The runner stops its processes and removes its temporary
vault, binary, logs, and build cache on exit, including after failure.
Inspect evidence before reporting¶
Use stat --json to obtain a file's current_version_id, then inspect that
version without starting processing:
docbank document stat /inbox/notes.txt --json
docbank processing coverage <version-uuid> --profile <name> --json
docbank rendition window /inbox/notes.txt --version <version-uuid> --profile <name>
Both commands require a profile listed by docbank processing profiles --json.
A configured profile whose runtime is unavailable is not enough, even if its
renditions are retained. Reports can still use retained evidence under such a
configured profile. A profile error here does not mean that evidence is missing.
Coverage reports rendition and embedding counters for the one requested
version. JSON contains content_version_id and the complete coverage object.
Human output names the profile, fingerprint, state, and each class's counters.
Unavailable, partial, rebuilding, and stale observations exit successfully.
Unknown, replaced, or trashed versions count as stale for a required rendition.
An unneeded class marked not_required does not establish source availability.
previous_generation_serving overlaps rebuilding. Do not add it to the total.
These processing counters do not inspect term matches, dates, or attachment families. They do not promise that a strict report will succeed.
Read and continue a text window¶
rendition window requires the selected version to remain current and live.
It discovers the active rendition for the named profile and returns at most
8,000 characters by default. Use --max-chars for 1–16,000 characters and
--json for the text, full rendition identity, offsets, and EOF flag.
The text is stored Markdown, including its metadata envelope and escaped
punctuation. It is not rendered or unescaped.
The human result prints a continuation command. Follow it to keep reading the same attachment:
docbank rendition window id:<node-id> --version <version-uuid> --profile <name> \
--attachment <attachment-id> --offset <next-offset> --max-chars 8000
Offsets count Unicode scalar values, not bytes or visible grapheme clusters.
Offsets range from 0 to 2,147,483,647. A nonzero offset requires an attachment
ID, and a pinned first window can also use --attachment at offset zero. The
command refuses a replaced rendition instead of continuing into its
replacement. An offset exactly at EOF succeeds with empty text. An offset past
EOF fails. No command automatically fetches the remaining windows.
Discovery uses the document catalog. It cannot find a file deeper than 256 path
components, with a path longer than 16 KiB in UTF-8 bytes, or with a filename
longer than 255 Unicode scalar values. The filename cap does not apply to
ancestor directories. The CLI names the exceeded limit. Refreshing the
selection does not solve it. If you know the active attachment, pass
--attachment to skip discovery. The version and profile checks still apply.
Each unpinned discovery scans the traversable live vault tree. Pinned calls
skip that scan. The text reader still reads from the beginning to reach the
requested offset, so a bounded result does not imply a constant-time seek.
A window identifies the full artifact's checksum but does not independently
verify the entire file. Use rendition get below for that verification.
Read a retained rendition¶
When the profile retains sanitized Markdown, its active attachment is an authenticated Docbank resource. Read it by attachment ID:
The command verifies the complete stream before accepting it and writes the self-describing Markdown to standard output. A rendition is bounded to 64 MiB. It is not a replacement original, and it is not a general-purpose provider export. The web application and TUI show the same retained sanitized Markdown and its identity. They do not enable raw provider Markdown as ordinary document content.
Retention, consent, and backup¶
The profile controls whether Docbank retains sanitized Markdown, provider Markdown, and typed artifacts. A rendition profile always retains normalized evidence, and embedding work retains vector sets. The preview lists the classes for the selected profile, so you do not have to infer retention from a provider name.
Retained derivatives are catalog-authorized content. They follow the source version's lifecycle, are included in catalog-authorized backups, and can keep related source content reachable while the catalog still authorizes them. Physical lexical and ANN indexes are rebuildable projections, not backup authority. Restoring a backup does not call a rendition or embedding provider. New provider work needs a new plan and consent.
Use the derivative-purge API only after its own preview. A live purge can remove selected live derivative heads, attachments, builds, artifacts, segments, and vector sets, but it cannot rewrite immutable backup snapshots. Removing Markdown alone does not establish that other retained derivative classes or backup copies are gone.
Consent is scoped to the current principal, processing scope, profile, provider disclosure, input classes, and retained classes. It can be active, required, expired, or revoked. API clients may grant a future expiry or revoke current operator consent. The web app and API can revoke all processing consent for this operator across profiles. A changed plan fingerprint, expired consent, or revocation stops new egress and prevents publication under that authorization.
Next: configure a local profile in Document processing configuration, search an authorized source set in Automatic and processing search, and inspect the data model in Document derivatives.
